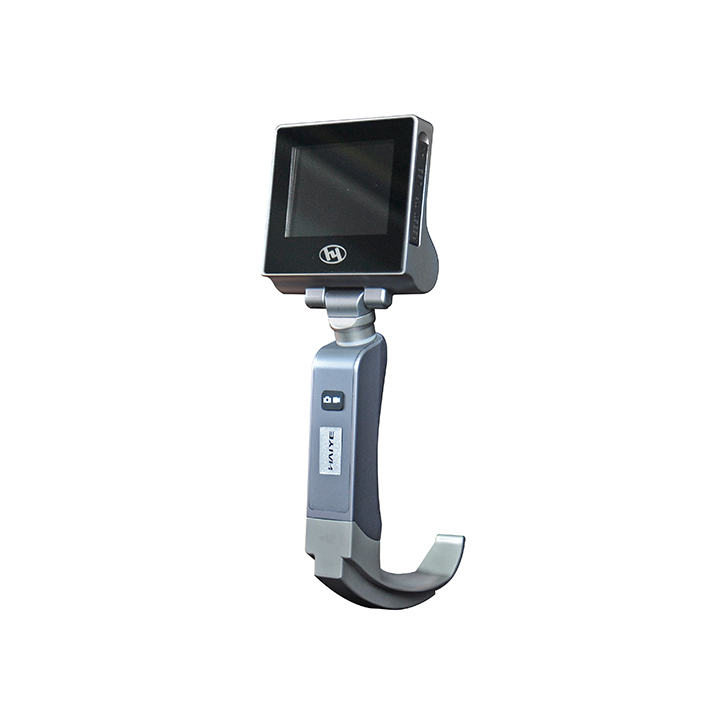

Micro USB Direct Laryngoscopy Intubation Rigid Video Laryngoscope Resolution 1200*1600px

Name: Micro USB Direct Laryngoscopy Intubation Rigid Video Laryngoscope Resolution 12001600px
Brand: Haiye
Price: 1000 USD

Micro USB Direct Laryngoscopy Intubation Rigid Video Laryngoscope Resolution 1200*1600px Manufactures

Brand Name : Haiye

Model Number : HYHJ-KC

Certification : CE ,FDA ,ISO13485

Place of Origin : China

MOQ : 1 set

Price : 1000-1500 USD/set

Payment Terms : L/C, D/P, T/T

Supply Ability : 1000 sets

Delivery Time : 5-8 days

Packaging Details : Carton

Products name : Video Laryngoscope

Screen : 3.0 inch

Resolution : 960*480

Pixel : 2 Million

Image/ Video function : Yes

Reusable blade : Difficulty-blade ,Large-adult ,Medium-adult ,Pediatric and Neonate

Material : Stainless steel

Certificate : CE & FDA & ISO 13485

Cycle life of battery : >600 Times

Battery : Rechargeable Litium Battery

Charging Port : Micro USB

Contact Now

New Electronic Rigid Scope Video Laryngoscope Direct Laryngoscopy Intubation Resolution 1200*1600px

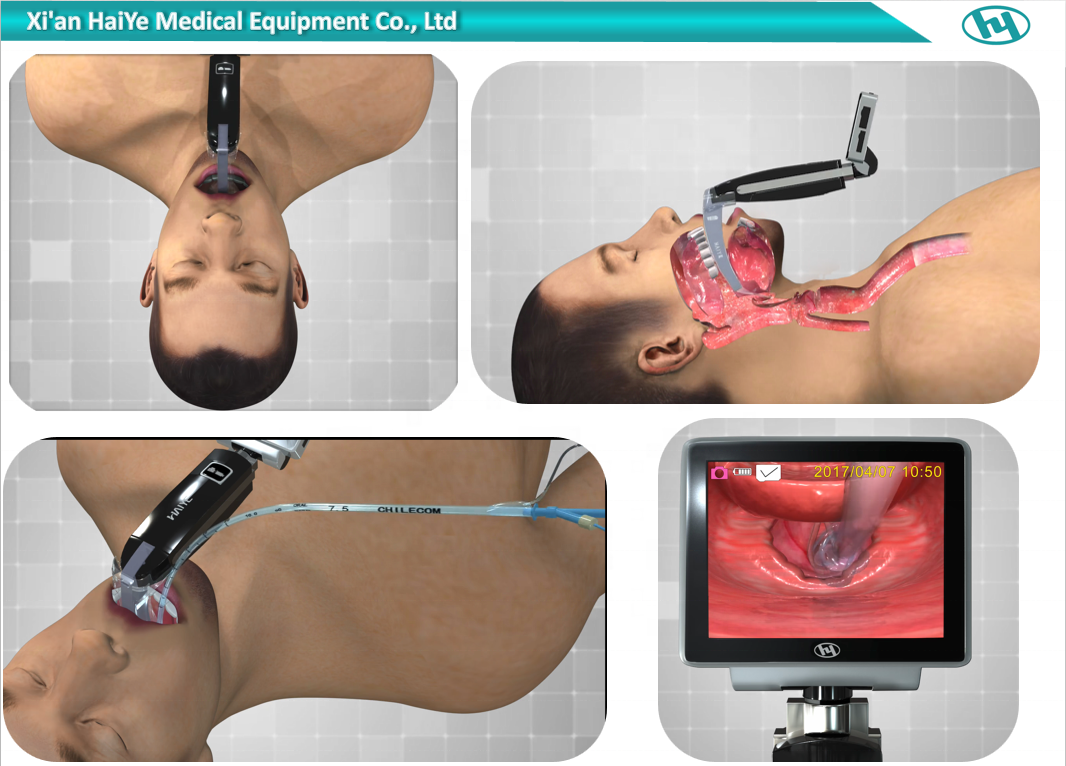

The video laryngoscope used the hospital.

As a perfect solution for doctors in Anesthesia, ICU, Operation Room, Emergency Rescue to handle all kinds of airway management problems.

A. Clinical endotracheal intubation.

B. Simulation practice.

C. Clinical teaching.

D. Difficult airway intubation.

Specifications for the Video Laryngoscope

PARTS	Description	Technical Index
Machine	Screen	3 inch LCD
	Resolution	960*480 (RGB)
	Viewing angle	≥70º
	Power	<2W
	Display front and back rotation Angle	0 º~175 º
	Weight	225g
Camera	Illuminance	≥3000 LUX
Camera	Resolution	1200*1600 px
Image/Video function	Image/ Video function	Yes
	Output	USB output, Easy to storage and establish image/video
	Memory type	Micro SD card 16GB
Battery	Battery Type	Rechargable lithium battery
	Capacity	3400mAh
	Cycle life of battery	>600 times
	Battery working time	>400min
	Charging time	<2(hrs)
	Charging Port	Micro USB
Power Adapter	Input	100-250V, 50 Hz.
Power Adapter	Output	5V1A
Working Condition	Temperature	-5℃~+50℃
	Humidity	10%~90%
	Air Pressure	860~1060hpa
Transport / Storage Condition	Temperature	-10℃~50℃
	Humidity	≤93%
	Air Pressure	500~1060hpa

Model No.: HYHJ-KC

Reusable blade : 1.Difficulty -blade 2. Large-adult 3. Medium-adult 4. Pediatric 5. Neonate

Features:

*Anti fog coating on distal lens
*Video/Photo function
*Battery rechargeable
*One button Only, Fast and simple operation
*360 °All sight LCD, no blind spot

*Application range:
Routine and difficult tracheal intubation, Could be used for doctors in Anesthesia,
ICU/NICU/CCU, Operating Room, Emergency Rescue, Ambulance, ENT etc.
Clinical training and teaching of tracheal intubation.

Advantages

**Portable

Light weight, main unit is less than 350g. . Excellent body design, easy to install or remove. It's ready to use in no time.

Packing and Delivery

Packing Size :415*110*345mm

Package Type :Carton ,Standard Export Packing for Ansthesia Video Laryngoscope With 1 blade.

Micro USB Direct Laryngoscopy Intubation Rigid Video Laryngoscope Resolution 1200*1600px

Certificate

Micro USB Direct Laryngoscopy Intubation Rigid Video Laryngoscope Resolution 1200*1600px
