Intensive Care Unit Haiye Video Laryngoscope For Airway Intubation Learning
With the rapid development of medical technology, anesthetic laryngoscope video product is used in many large comprehensive hospitals, and ent specialist hospital. The whole video laryngoscope by video image display (the host), work system composed of laryngoscope, connecting cable, charger, it can clear display oral internal image. Its operation method is simple, less injury.
Anesthesia video laryngoscope characteristics is obvious, the operate method is simple and easy to learn, also it’s has less endotracheal intubation damage; the material is adopted by the special prevent mist processing material, which not easily affected by respiratory tract environment temperature difference with the outside world and can improve the success rate of tracheal intubation.
Description of Products:
The product HYHJ-KC’s design fully takes into account the particularity of clinical use, It adopts a large number of medical grade metal materials and advanced processing technology; optimized and improved the structure design, imaging quality and convenience of use which perfectly combines the appearance and use together.
Product features:
simple and graceful, clear imaging, simple operation, complete specifications. Products with photography, freeze frame, video recording, HD output, data storage, large capacity export and other functions. The large-capacity battery lasts longer, and the display can rotate from front to back, left to right.
Product configuration:

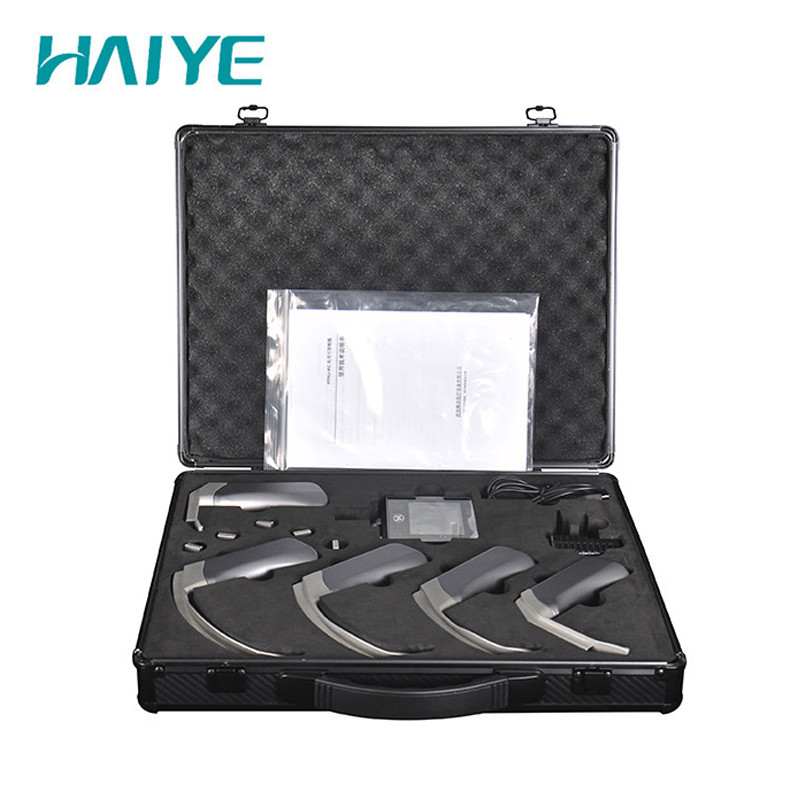

In order to enhance the convenience of use, the display screen can be connected with any size of the handle, the product can be reused and one-time use (5 specifications: adult large, adult medium, child, newborn, premature).
- Powder Button: On/Off and freeze frame

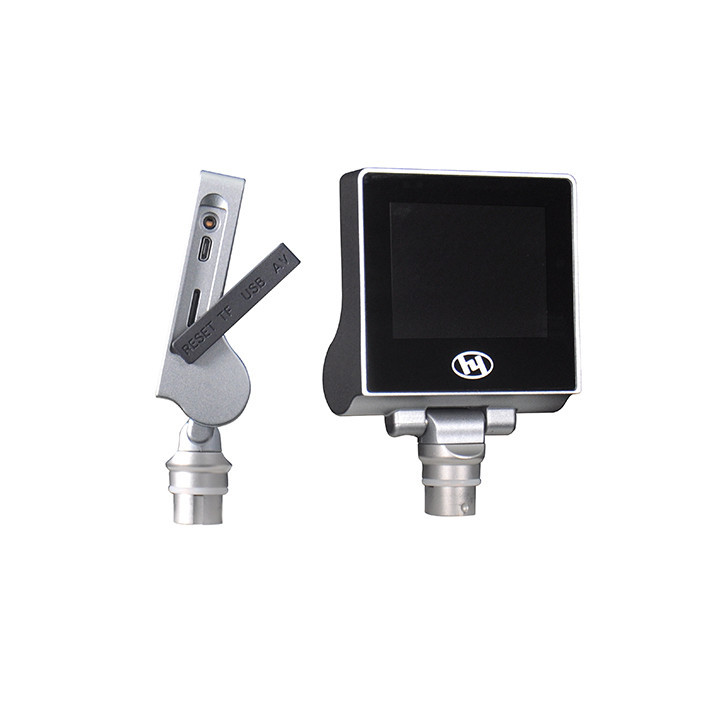

- Display module: 3’’ high definition display, image much clearer; metal alloy swing frame, can rotate large angle from left, right, front, and back
- Alloy handle: Ergonomic design, more comfortable grip
- Medical stainless steel: suitable for different ways of disinfection, reusable
- USB port: charging and data transfer

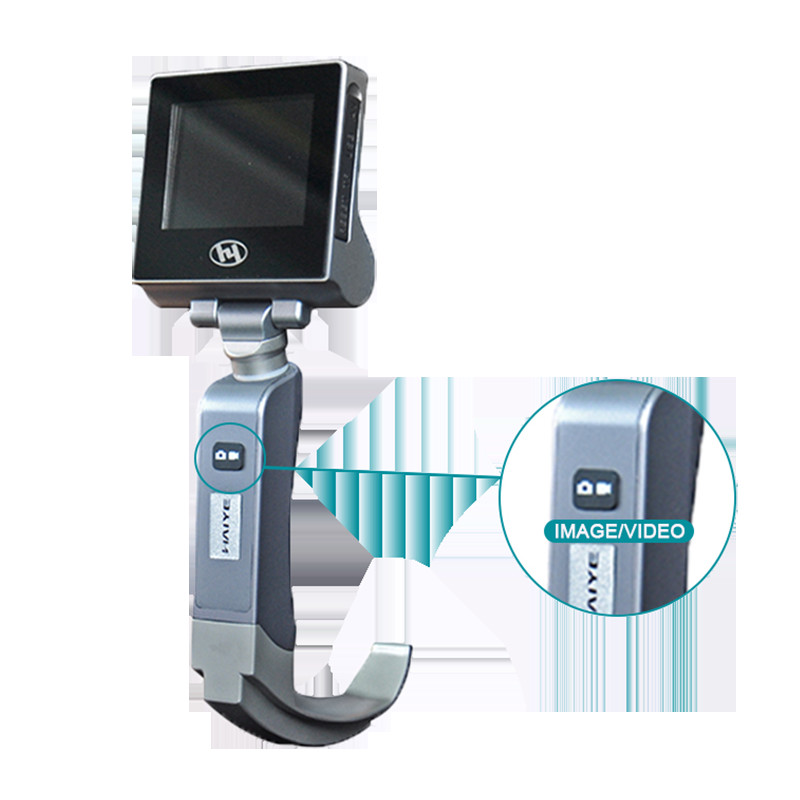

- Photo button/Shutter: Short press-take photo, long press-vedio recording
- 200 million pixel double anti-fog carema system
Technical feature
| Name | Technical term | Technical Index |
| Machine | Display Resolution | 960 x 480 |
| Pixels | 2 million |
| Camera Resolution | 1600 x 1200 |
| Viewing angle | 70 ± 2 degree |
| Depth of field | 3~100mm |
| Host key | Freeze frame, take photo and video |
| Material | Medical Stainless Steel |
| Light source | Built-in high power waterproof LED light source |
| Camera | Dual anti-fog, intubation without blind area |
| Interface | USB,TF(Hot plug) |
| Rotate angle | front to back: 135 º, left to right: 275 º |

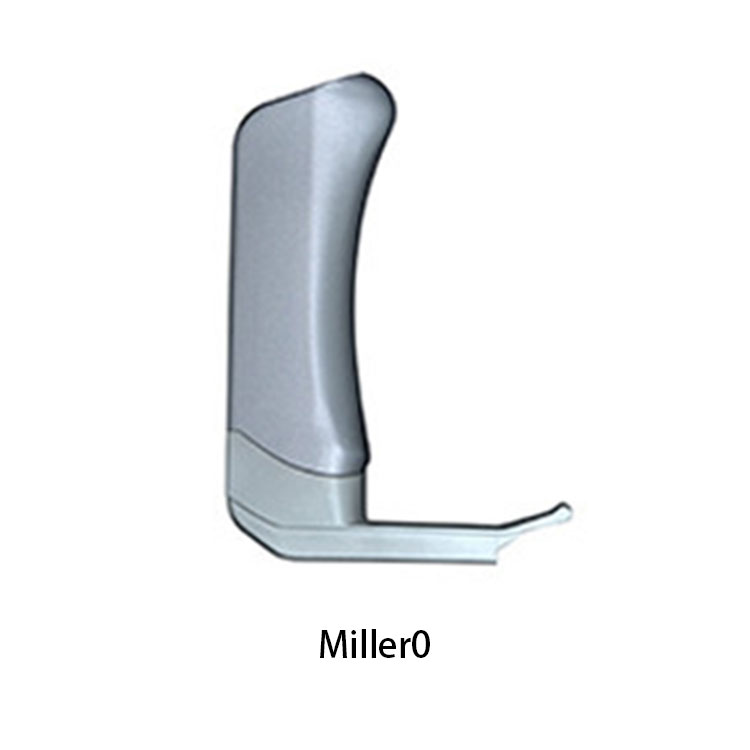

| laryngoscope | 5 resuable blades suit for different oral structure |
| Powder Adapter | Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V, 2000mA, USB output |
| Battery | Charging time | <4h |
| Cycle life of battery | > 800 times |
| Battery type | lithium ion battery |
| Battery working time | continues use ≥ 350 mins |
| Working Condition | Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% |
| atmosphere pressure | 860hpa~1060hpa |
| internal electric source | lithium ion battery,3.7V |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Company Introduction
Haiye is designed to produce practical, durable and easy to use portable video laryngoscope, the whole machine adopts a unique streamlined integrated design, in line with the principles of ergonomics, to minimize the damage to the mouth and throat, most difficult airway intubation can provide an effective solution.Our high standard dust-free assembly workshop, standardized aseptic production workshop, well-equipped laboratory and a high-quality, efficient entrepreneurial team, can provide you an effective solution for difficult airways intubation.
Welcome to inquiry if you have any interests!
OEM order is acceptable.
Attn: Kristen Shi
