Haiye Medical Equipment------5 Resuable Stainless Blades Handheld Video Laryngoscope
Video laryngoscope characteristics is obvious, the operate method is simple and easy to learn, also it’s has less endotracheal intubation damage; the material is adopted by the special prevent mist processing material, which not easily affected by respiratory tract environment temperature difference with the outside world and can improve the success rate of tracheal intubation.
- The more fully protected camera and optical cable,
- smart portable machine,
- the comfortable handle grip,
- dual anti-fog peephole and lens,
- no waiting booting ,
- easily retain audio and video data,
- photography with one button switch.
Compared with the common laryngoscope, the anesthesia video laryngoscope is designed without exposed lighting device circuit contacts, which can reduce the poor contact faults. At the same time, anesthesia video laryngoscope products are more high-performance large capacity rechargeable lithium battery, generally can be used continuously for 4 hours, more than a variety of specifications of peep tablets for your choice, can avoid cross infection.
Generally speaking, the performance advantage of anesthesia video laryngoscope is more obvious, the machine is small and portable, more ultra high pixel and high definition, especially the peep piece and lens dual anti-fog, short starting time, less damage to the trachea, long service life, disposable blades.
Technical feature
| Name | Technical term | Technical Index |
| Machine | Display Resolution | 960 x 480 |
| Pixels | 2 million |
| Camera Resolution | 1600 x 1200 |
| Viewing angle | 70 ± 2 degree |
| Depth of field | 3~100mm |
| Host key | Freeze frame, take photo and video |
| Material | Medical Stainless Steel |
| Light source | Built-in high power waterproof LED light source |
| Camera | Dual anti-fog, intubation without blind area |
| Interface | USB,TF(Hot plug) |
| Roatate angle | front to back: 135 º, left to right: 275 º |

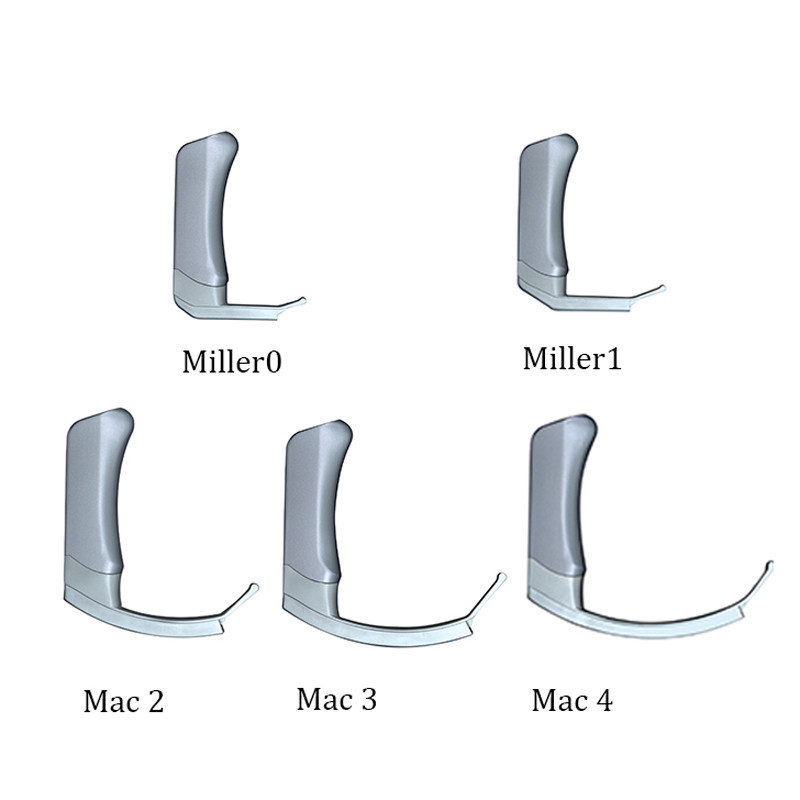

| laryngoscope | 5 reasuable blades suit for different oral structure |
| Powder Adapter | Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output |
| Battery | Charging time | <4h |
| Cycle life of battery | > 800 times |
| Battery type | lithium ion battery |
| Battery working time | continues use ≥ 350 mins |
| Working Condition | Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% |
| atmosphere pressure | 860hpa~1060hpa |
| internal electric source | lithium ion battery,3.7V |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Xi 'an Haye Medical Equipment Co., LTD., founded in 2013, with Ding Hailiang as its legal representative, is a high-tech enterprise integrating science, industry and trade. Since its establishment, the company has been focusing on the visual medical field, and committed to the professional development and production of video laryngoscope, developed common laryngoscope, video hard mirror, video hard tube mirror, video soft mirror and other series of products.
Welcome to inquiry if you have any interests!
OEM order is acceptable.
Attn: Kristen Shi
|
|

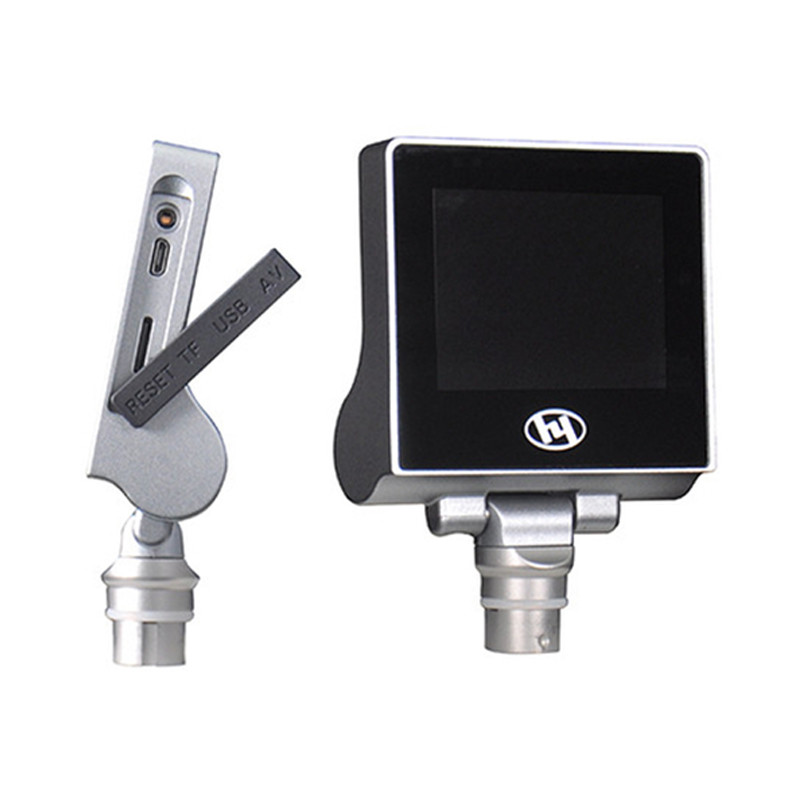

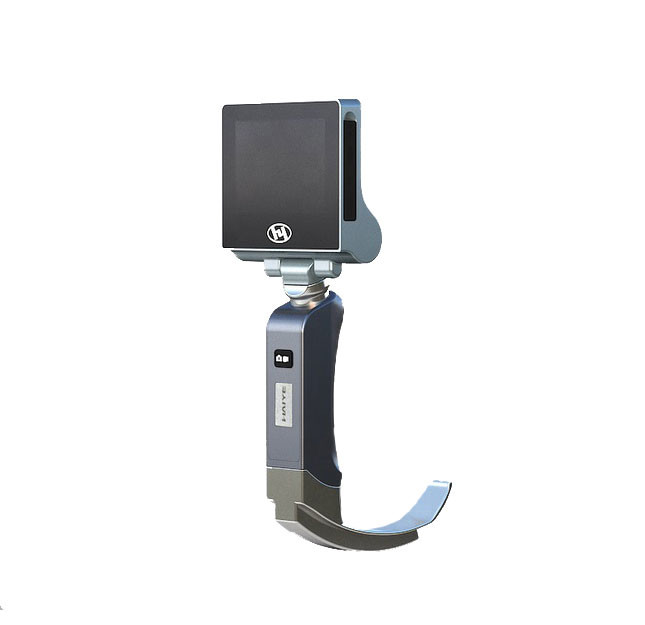

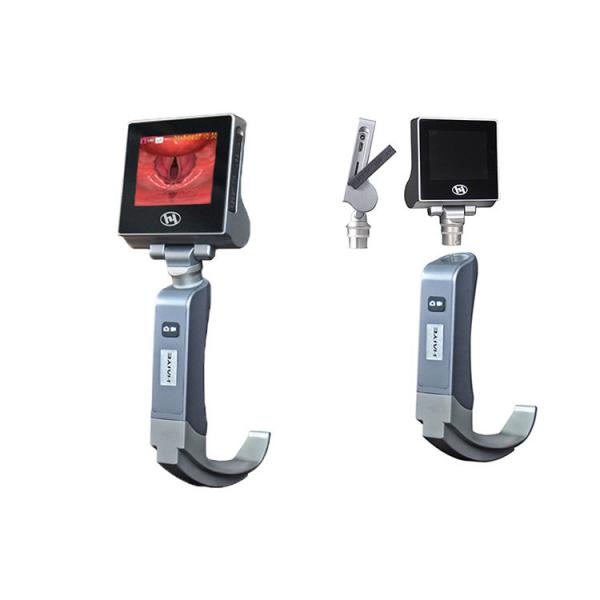

5 Resuable Stainless Blades Handheld Video Laryngoscope - Haiye Medical Equipment Images
|
