Medical PC Anesthesia Video Laryngoscope With Disposable Blade 3.0 Inch Screen

Xian Haiye Medical Equipment Co.,Ltd
Contact Now

Medical PC Anesthesia Video Laryngoscope With Disposable Blade 3.0 Inch Screen

Brand Name : Haiye

Model Number : HYHJ-1330 II

Certification : CE ,ISO13485 ,FDA

Place of Origin : CHINA

MOQ : 3 Sets

Price : USD480/Set

Payment Terms : T/T

Supply Ability : 5000Sets/Day

Delivery Time : 1 Day

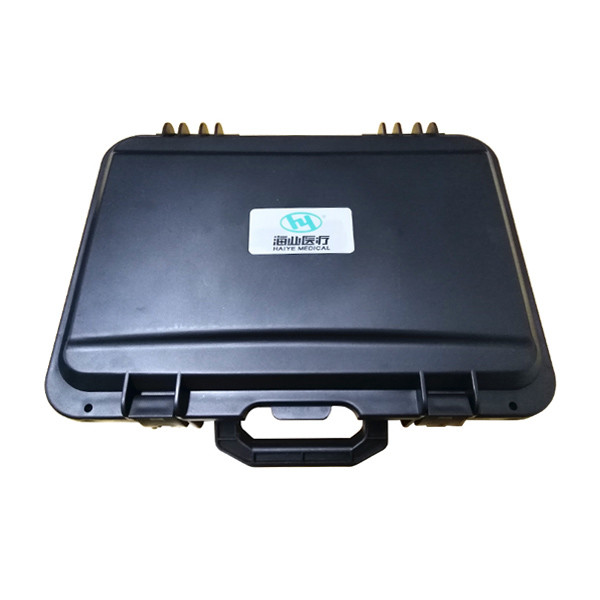

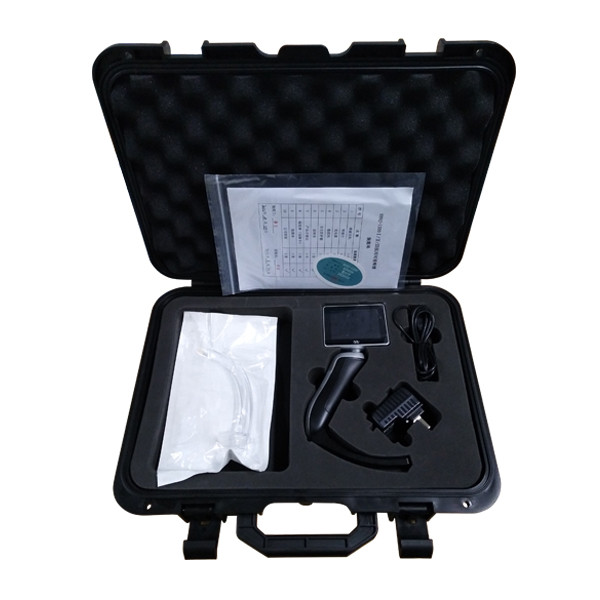

Packaging Details : Anti-drop case with foam protect in carton: 1set/foam protect case/master carton Net weight:1.6KGS Gross Weight:1.9kgs carton size: 260*230*185MM

Product : Video Laryngoscope

Screen : 3.0 inch

Resolution : 960*480

Pixel : 2 million

Material : Medical PC

Storage Card : 8GB to 32 GB

Certificate : CE ,FDA ,ISO13485

Depth of Filed : 3-100mm

Field angle : 70+2

Battery : Rechargeable Lithium battery

Anti-fog : yes

Battery Cycly life of time : >600 times

Battery working time : >400 hrs

Contact Now

Medical PC Anesthesia Video Laryngoscope With Disposable Blade 3.0 Inch Screen

Company Overview:




Product of video laryngoscope HYHJ-1330 II

Production Capacity:




Factory price Surgical and Anesthesia Disposable blade Video Laryngoscope

Portable Adult disposable blade video laryngoscope

Model No.: HYHJ-1330I ,HYHJ-1330II ,HYHJ-1330III

Disposable blade : 1. Adult 2. Pediatric 3. Neonate

Specifications for the Video Laryngoscope

PARTS
Description
Technical Index
Machine
Screen
3 inch LCD
Resolution
960*480 (RGB)
Viewing angle
≥70º
Power
<2W
Display front and back rotation Angle
0 º~175 º
Weight
225g
Camera
Illuminance
≥3000 LUX
Resolution
1280*720 px
Image/Video function
Image/ Video function
Yes
Output
USB output, Easy to storage and establish image/video
Memory type
Micro SD card 32GB
Battery
Battery Type
Rechargable lithium battery
Capacity
3400mAh
Cycle life of battery
>600 times
Battery working time
>400min
Charging time
<2(hrs)
Charging Port
Micro USB
Power Adapter
Input
100-250V, 50 Hz.
Output
5V1A
Working

Condition
Temperature
-5℃~+50℃
Humidity
10%~90%
Air Pressure
860~1060hpa
Transport / Storage

Condition
Temperature
-10℃~50℃
Humidity
≤93%
Air Pressure
500~1060hpa

Main Features

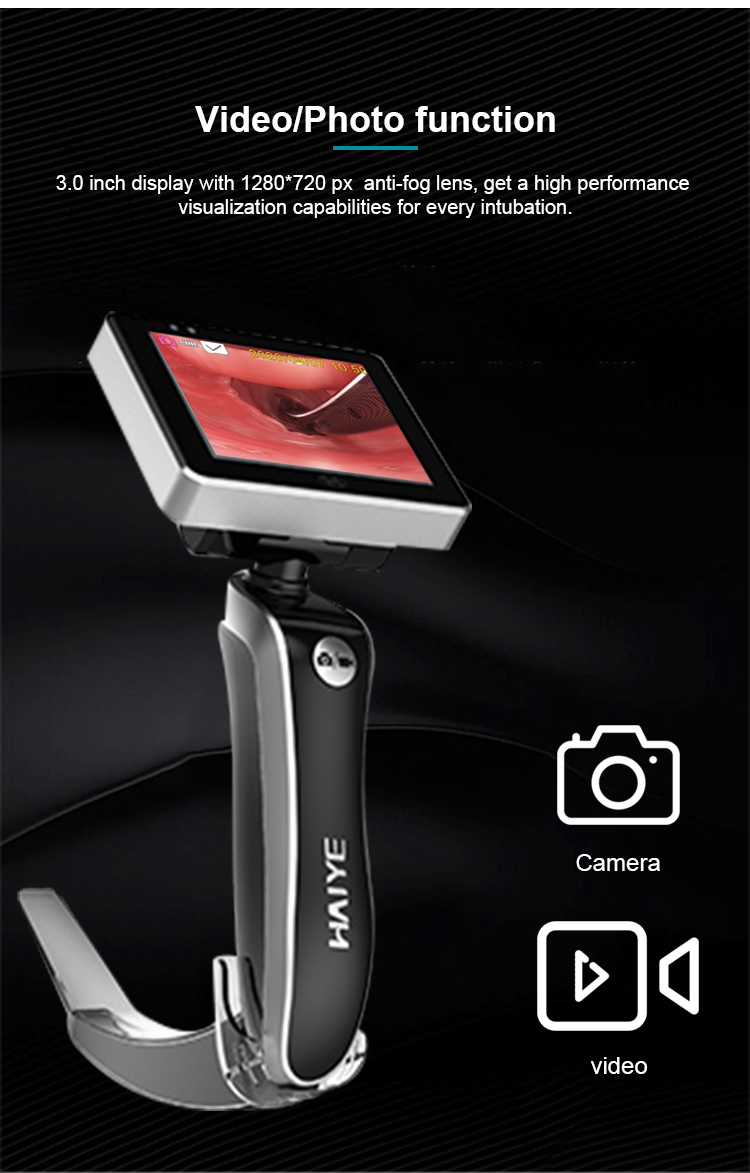

Anti fog coating on distal lens Video/Photo function Battery rechargeable One button Only, Fast and simple operation

360 °All sight LCD, no blind spot

Application range:

Routine and difficult tracheal intubation, Could be used for doctors in Anesthesia, ICU/NICU/CCU, Operating Room, Emergency Rescue, Ambulance, ENT etc.

Clinical training and teaching of tracheal intubation.

One shot button for Recording

One cable connect to PC for data management

One cable connect to large LCD for better view (option)

Full touch scree with user friendly operation

Wireless charging

Medical PC Anesthesia Video Laryngoscope With Disposable Blade 3.0 Inch Screen
Medical PC Anesthesia Video Laryngoscope With Disposable Blade 3.0 Inch ScreenMedical PC Anesthesia Video Laryngoscope With Disposable Blade 3.0 Inch ScreenMedical PC Anesthesia Video Laryngoscope With Disposable Blade 3.0 Inch ScreenMedical PC Anesthesia Video Laryngoscope With Disposable Blade 3.0 Inch Screen
Medical PC Anesthesia Video Laryngoscope With Disposable Blade 3.0 Inch Screen
EXHIBATION
Medical PC Anesthesia Video Laryngoscope With Disposable Blade 3.0 Inch Screen
Medical PC Anesthesia Video Laryngoscope With Disposable Blade 3.0 Inch Screen
Medical PC Anesthesia Video Laryngoscope With Disposable Blade 3.0 Inch Screen
Medical PC Anesthesia Video Laryngoscope With Disposable Blade 3.0 Inch Screen
Medical PC Anesthesia Video Laryngoscope With Disposable Blade 3.0 Inch Screen

FAQ

Q: Are you Manufacturer?
A: We are professional manufacturer of video laryngoscope in China over 5 years, now we mainly produce video laryngoscope with disposable and reusable blade,welcome to visit our factory.


Q: What’s your MOQ and OEM service available?
A: 1 sets as sample can accept, we offer OEM service and print your logo as your requirement.


Q: Can we replace disposable and reusable blade?
A: Main machine is the same, you can match our disposable or reusable freely.


Q: Whats your warranty?
A: We offer 12 months warranty, within warranty change new machine, after warranty only pay produce cost.
